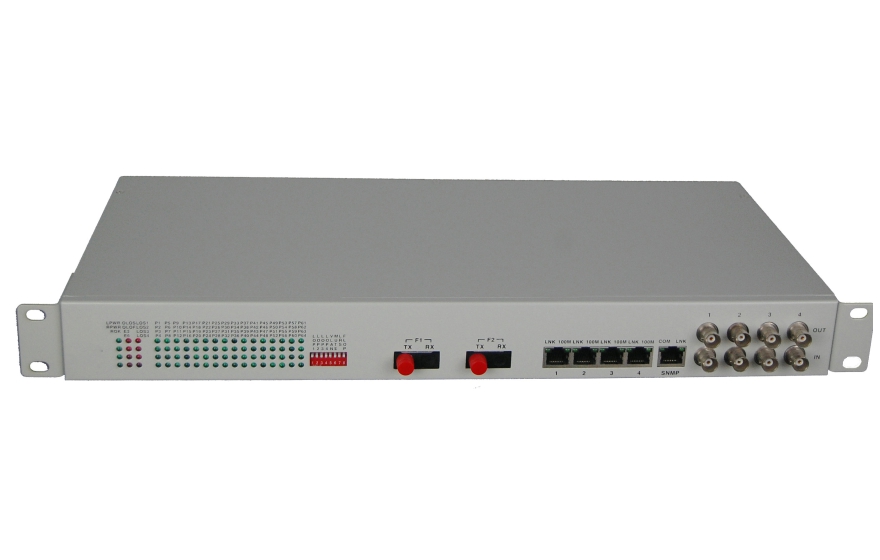

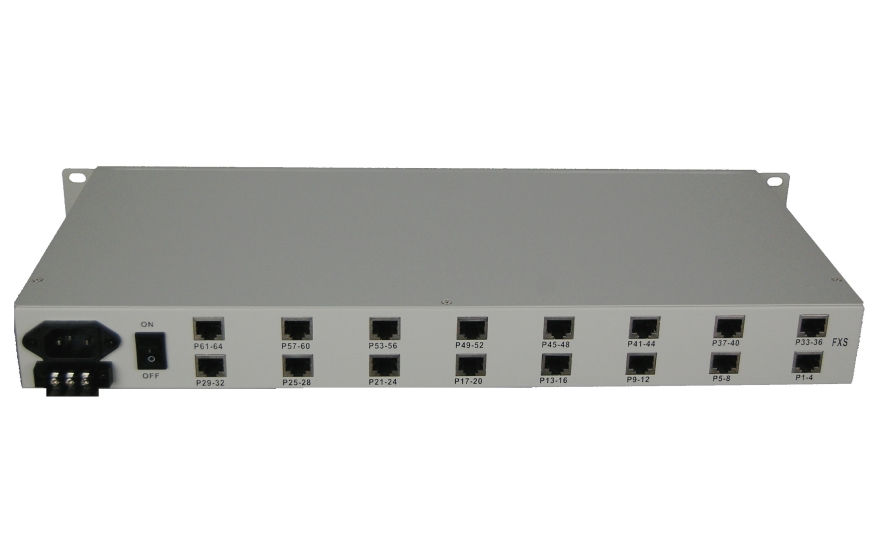

Fiber-64Voice + 4E1 + 4GE + 4RS232 Multiplexer

Type:FCP-O64E4G4/FCP-S64E4G4 Message

Description:This series of products is developed based on FPGA. This product is 19-inch 1U rack-mounted installation providing 64*Voice 1 ~ 4 E1 interface 4*10/100/1000M Gigabit Ethernet interface (Wire Speed 1000M). 4*GE Ethernet interface for the

Product Description
  This series of products is developed based on FPGA. This product is 19-inch 1U rack-mounted installation providing 64*Voice 1 ~ 4 E1 interface 4*10/100/1000M Gigabit Ethernet interface (Wire Speed 1000M). 4*GE Ethernet interface for the switch port can support VLAN division. The application is very flexible. With perfect alarm function the machine is stable and reliable low power consumption high integration small size.
Functional Properties
◆ The product is 19 "1U rack mounted;
◆ E1 interface in line with G.703 recommendations the use of all-digital clock recovery and smooth phase-locked technology;
◆ Voice port to support FXO/FXS/2-4 Wire E&M/2-4 wire Audio/Magnet phone interfaceFXO port plug into PBXFXS port is connected to the user's telephone;
◆ Voice FXO / FXS access support for caller ID / reverse polarity billing / fax function;
◆ Both sides of the device support FXO+FXS hybrid access;

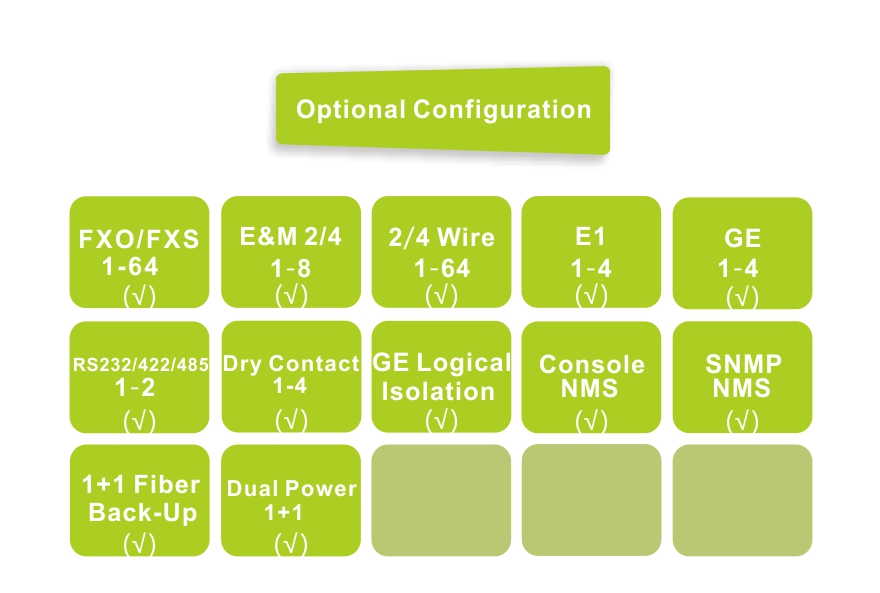

◆ Provide 2 expansion interface you can extend 1 ~ 2 asynchronous data such as RS232/RS485/RS422/TTL etc .; or 1 to 4 dry contact;
◆ Ethernet bandwidth for the wire speed 1000M interface 10/100/1000M full/half duplex fully adaptive support VLAN division;
◆ 4*GE Ethernet interface for the switch port VLAN can also be divided into four channels can be set to logic isolation;
◆ Each Ethernet port supports Auto-MDIX (cross / direct line adaptation);
◆ No relay transmission distance of up to 2 to 120 km;
◆ A variety of power supply options: AC220V DC-48V / DC24V etc .; support AC + DC; AC + AC; DC + DC and other dual power backup mode;
◆ Telephone/Ethernet/Serial interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;
Technical Parameters

◆  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

◆  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆  Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆  Dimension

    Product Size:         216X140X31mm(WXDXH)

       Piece Weight :    1KG

◆  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

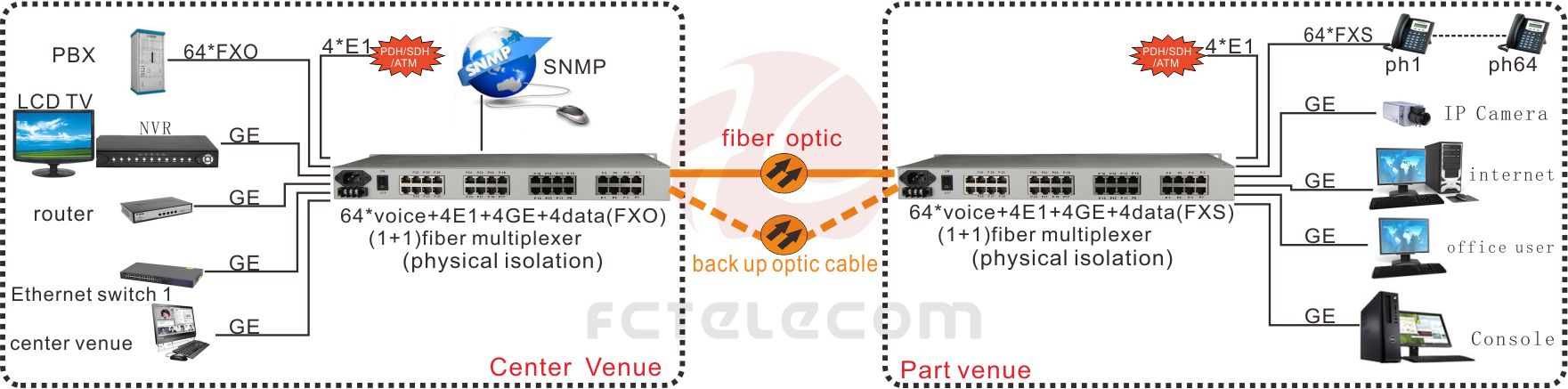

Application Scheme
