Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

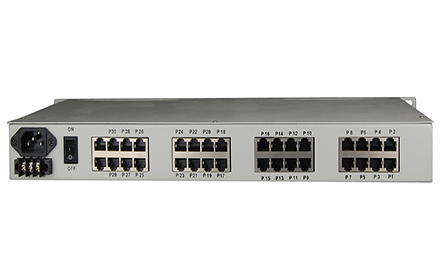

30FXS/FXO over E1（CAS signaling）

Type:FCC-CS30 Message

Description:30*telephone to one signaling or signaling(CAS)you can set the ABCD code by Console

Product Description
              The device is transmitting equipment development based on the company developed a E1 transmission line for ultra large scale integrated circuit. Has a sound alarm function optional 1~30 voice. 16 slot and signaling No. 1 signaling or signaling to pass; electric part of equipment for the whole circuit the reliability stability low power consumption high integration small volume easy installation and maintenance.
Functional Properties
◆   based on proprietary integrated circuit;
◆   machine for board design;

◆   16 signaling with the 1st slot signaling or channel associated signaling (CAS) to pass with E1 digital trunk interface cards and E1 PBX to pass;

◆   E1 interface complies with G.703 all-digital clock recovery and smooth phase-locked technology;
◆   1-30 channels of voice access support caller ID function;
◆   FXS voice ports support port FXS ports connected to the user's phone;
◆   desktop device can support independent SNMP network management (optional);
◆   multiple power mode options: AC220V DC-48V / DC24V etc;
Technical Parameters

◆   Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

     Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)
    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆   E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

◆    Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

◆   FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆   EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆   Dimension

    Product Size:         485X200X45mm(WXDXH) 19 1U

    Simple packaging:   522X198X82mm(WXDXH)

    Piece Weight :  2.4KG

◆   Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

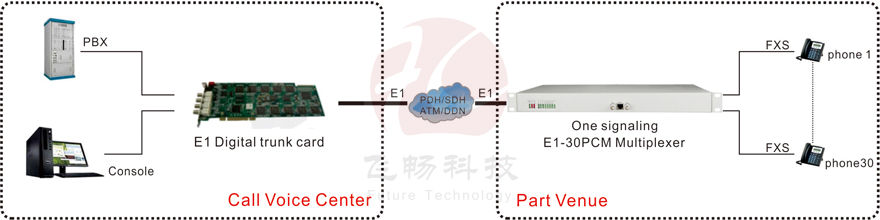

Application Scheme

Applications

DataSheet Download
?
