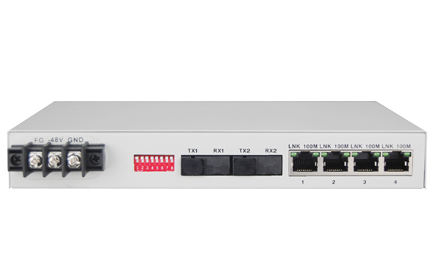

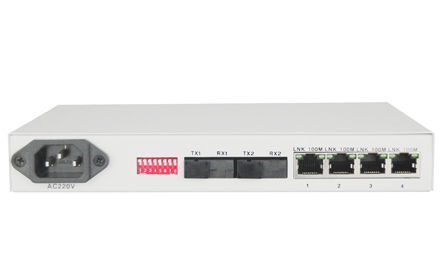

1+1 4FE Fiber Media Converter

Type:FC2M-F4b304 Message

Description:4*100 Base TX ports ，2*1+1 Backup Optic fiber,main optical fiber broken ，switch to the backup fiber

Product Description
             The device provides 1-4Channel 10M/100M Ethernet interface, master fiber interface and backup interface. 4Channel Ethernet interface is switch interface, can support VLAN.
Functional Properties

? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

? Device provides the main fiber interface with backup optical interfaces, dual fiber port backup function  ensures

      that the business will never break;

? Device provides 4 Ethernet UTP, 2 Ethernet optical port

?   Support full-duplex and half duplex network communication, with auto-negotiation capability;

?   The Ethernet interface supports jumbo frames (1916bit), which can match with the switch product complied  with IEEE802.10 protocol

?   4*100 megabit Ethernet channel, complete physical isolation. The same circuit optical fiber transmission of  4 group

       network business independently.

?   Division of VLAN base PORT, this method does not affect the remote device

?   802.1Q VLAN Division, at this time, the local and the remote interface can be divided into the same VALN

?   Device provides Console port, supports Terminal control device

?   Ethernet port priority setting

Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm, 1550nm

    Interface rate:              100 M, half/full duplex

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

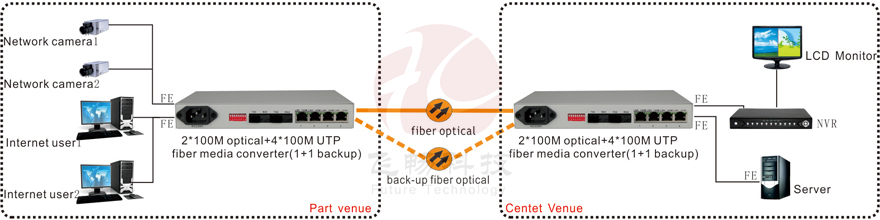

Application Scheme

Applications


DataSheet Download
?
