Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

6U Intergrated Access Rack

Type:FCK16-a2/d2347 Message

Description:6U Rackmount ， can insert 30 * telephon Fiber Multipexer

Product Description

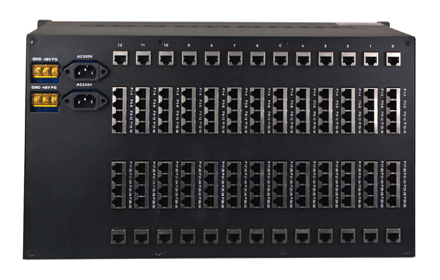

              This is 6U 13 interfaces Rack. The rack height is 6U can insert 13 block interface conversion cards or1 block network management card and 12 feature cards each card works independently. Different interface conversion cards can be inserted in and work simultaneously on the same rack. It uses communication isolation technology communication to separate system power from interface conversion card completely to ensure the reliability of the entire system

Functional Properties
Ø Can insert various types of interface converter produced by our company
Ø 19-Inch 6U standard rack using the principle of air good rack radiating performance ease of management and maintenance
Ø Can insert up to 12 hot-plug cards each interface conversion card can achieve conversion function independently

Ø Two power panel slots support mutual hot spare between two power units. Each power unit can support the entire rack work full of

      configuration. Two power units work together through shunt on the one hand to reduce each power unit load on the other hand by

       mutual hot spare to ensure if one power unit having problem within the time rack inner function panel can work

Ø Support SNMP Network Management
Ø Fully meet Telecom operation requirements Mean time Between Failures (MTBF) is more than 50000 hours.
Technical Parameters

u   Power

    Power supply:AC180V ~ 260V；DC–48V；DC +24V
    Maximum number of power modules: 2 power modules
    Maximum power parameters of the function card:  DC5V/1.5A (7.5W)
    Power consumption: 100W

u   Dimension

    Product size:        443X365X271mm(WXDXH)
    Piece weight : 15KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity: 5%~95 % (no condensation)
    Storage temperature: -40°C ~ 80°C
    Storage Humidity: 5%~95 % (no condensation)

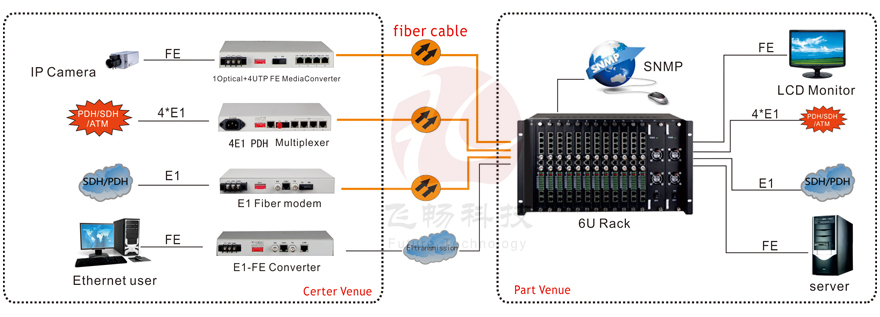

Application Scheme

Applications

DataSheet Download
?
