Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

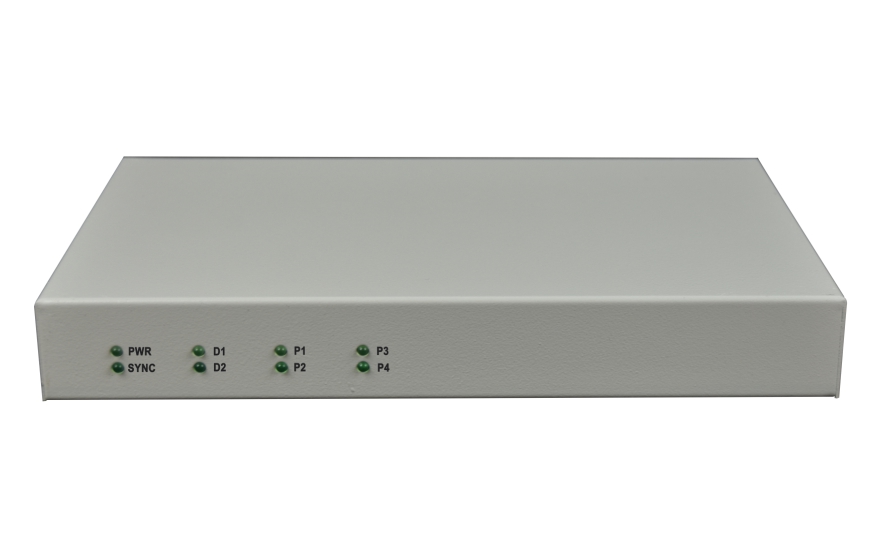

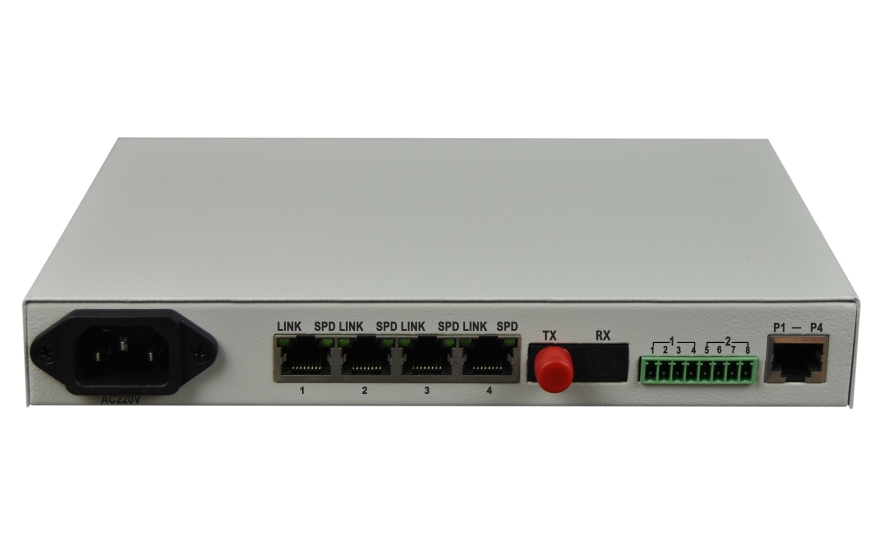

4*Voice+4FE+2*Serial(Desktop Tpye)

Type:FCP-O4F1/FCP-S4F1350 Message

Description:4 * telephone（Desktop Tpye），4*100 Mbps Etherne4*RS232/422/485 serial interface， Support 4U rackmount，SNMP

Product Description
    The Equipment supports 4*100M Ethernet +4*Voice+ 2*RS232/422/485/Dry contact  interface to the optical fiber converter to achieve network + telephone + serial data + Dry contact 4 type interface in the same core Optical fiber transmission is widely used in a variety of industrial control card instrumentation and other occasions not only save fiber resources but also save fiber equipment reduce the point of failure to facilitate the maintenance of equipment. 4*100M Ethernet interface bandwidth for the wire speed 100M the Ethernet interface on the market are generally 10M /50M or <100M speed;
Functional Properties
◆  Equipment to provide 4*100M FE port; 4*voice interface 2*serial data interface / 4*dry contact;
◆  Voice port support FXO/FXS/2 Wire Audio/Magnet phone interface FXO port plug into PBX  FXS port is connected to the user's telephone;
◆  FXO/FXS telephone interface support caller ID / reverse polarity billing / fax function;
◆  Both sides of the device support FXO+FXS hybrid access;
◆  RS232/RS485/RS422/TTL/Dry contact transmission channel flexible application;
◆  Serial interface can be transmitted asynchronously from 300-115200 baud rate adaptive serial data;
◆  4*FE bandwidth is wire speed 100M automatically adapt to 10/100Mbps environment easy to upgrade the network;
◆  Ethernet interface supports full-duplex and half-duplex network communication with auto-negotiation capability MDI / MDI-X adaptive without manual adjustment;
◆  A variety of power options: AC220V DC-48V / DC24V;
◆  Telephone/Ethernet/serial-data interface with lightning protection lightning protection to IEC61000-4-5 short-circuit current wave 10/700μs open peak output voltage 6KV standard;



Technical Parameters

◆  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

◆  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

◆  EM 2/4 Line

    AD: 0dB

    DA: -3.5dB

    Two/Four-line Impedance: 600 Ohm

    Return loss: 20 dB

◆  Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆  Dimension

    Product Size:         216X140X31mm(WXDXH)

       Piece Weight :    1KG

◆  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

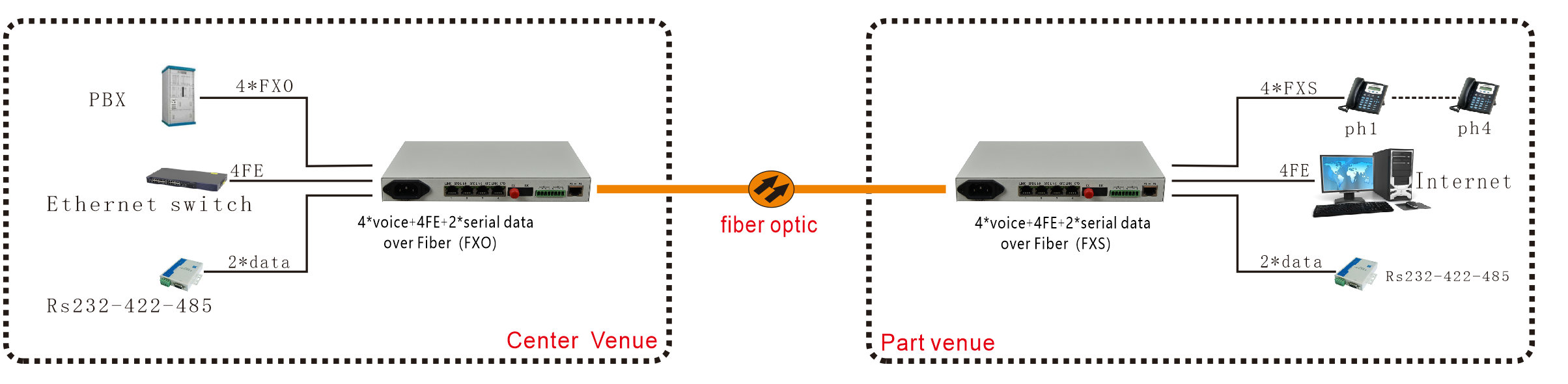

Application Scheme

Applications

4*Voice+4FE+2*Serial(Desktop Tpye)

DataSheet Download
?
