Products center

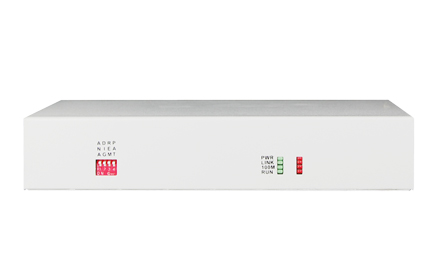

GE Fiber Media Converter

Type:FCM-G1 Message

Description:1*GE+1*1000Base-S/LX Ethernet Switch（Desktop Tpye），Built AC220 or DC48V power supply

Product Description
               The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100/1000M UTP and optical fiber. It mainly used for fiber network far distance (20/40/60/80/120km) transmission. Fiber port and UTP can work through 10/100/1000M rate.
Functional Properties

? International Standard: IEEE 802.3z 1000Base-SX/LX IEEE 802.3ab 1000Base-T

? Automatically adapt to 10Mbps,100Mbps,1000 Mbps environment, upgrade network easily

? Support full-duplex and half duplex network communication, with auto-negotiation capability;

? The Ethernet interface supports jumbo frames, which can match with the switch product complied with  IEEE802.10 protocol

? Support UTP cross connection switch optional, convenient for system debugging and setup

? Low power consumption, Low heating, can be stable work for a long time;

? Single-core optical fiber and internal and external power optional, expands user's needs

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  Ethernet interface(100/100/1000M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Power

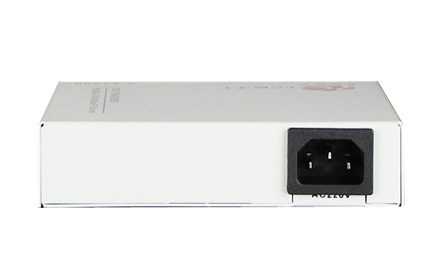

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         136X131X31mm(WXDXH)

       Piece Weight :    1KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)







Application Scheme

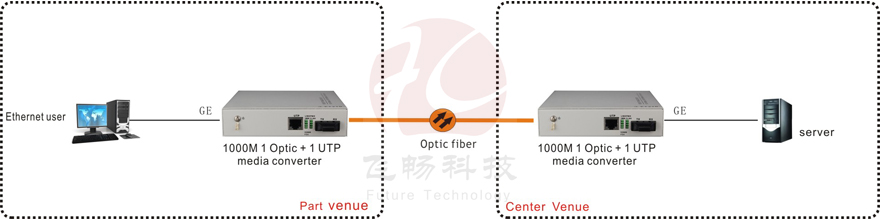

Applications 1

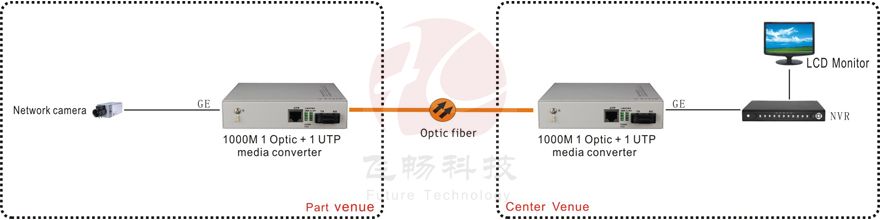

Applications 2


DataSheet Download
?
