Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

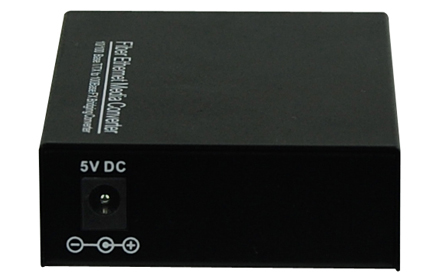

GE Fiber Media Converter（external power）

Type:FCMB-G1e Message

Description:1*GE+1*1000Base-S/LX Ethernet Switch（mini），External AC220 / 5V or DC48V / 5V power adapter

Product Description
              This series of products are IEEE802.3 Ethernet media converter, can be achieved between two media 10/100/1000M twisted pair fiber medium converting or extend the network transmission distance of optical fiber network, mainly used for long distance (20/40/60/80/100 km) transmission, the transmission speed of full support for 10/100/1000M.
Functional Properties
? international standards: IEEE 802.3z 1000Base-SX / LX 802.3ab 1000Base-T;
? monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
? support full and half duplex network communication, with auto-negotiation capability;
? VLAN support the transmission of long packets with protocol support IEEE802.1Q Items matching switch uses;
? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
? low power consumption. Low heat, stable operation for a long time;
? single fiber and within the external power supply options, expand the user's needs;
? External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  Ethernet interface(100/100/1000M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

   Product size:   93 X70 X25 mm(WXDXH)

   Simple packaging: 295X225X84mm( WXDXH)

   Piece weight:  0.5KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

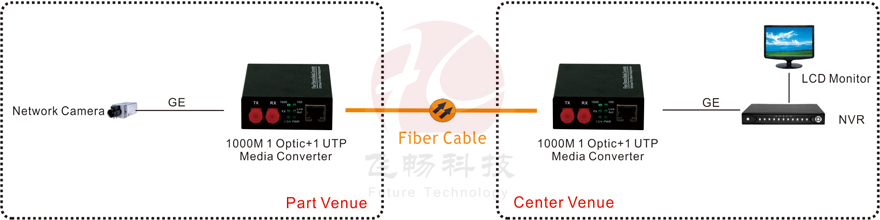

Application Scheme

Applications


DataSheet Download
?
