Products center

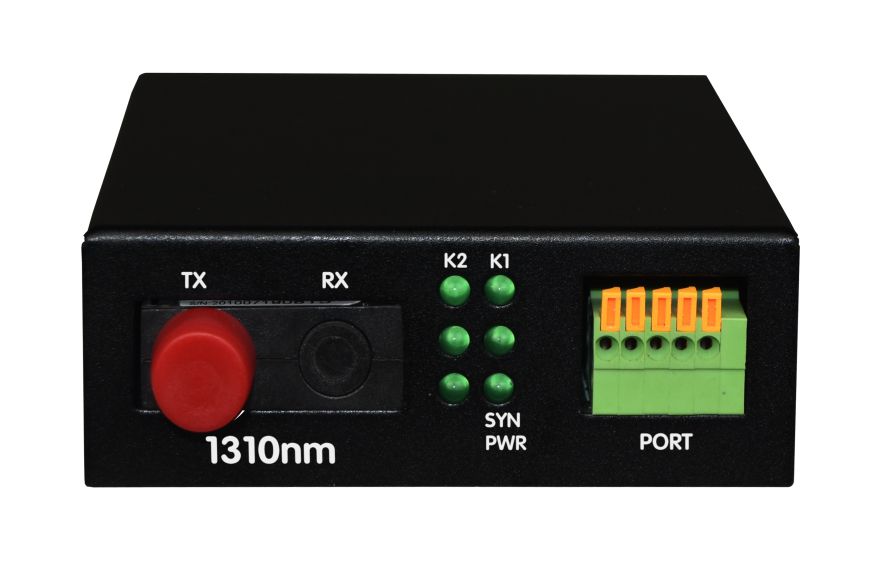

RS232/422/485 Fiber Modem（Mini）

Type:FCP-DRQ Message

Description:RS232/422/485 Fiber Modem ，While providing 3*RS232 / 422/485 serial interface ， Serial port communication rate up 921.6KBPS

Product Description
               This device is based on FPGA which supports asynchronous RS-232/422/485 communication interface Fiber Modem. The device is the best choice of connecting to the remote terminal unit (RTU) to a host (HOST) or a distributed data acquisition system (SCADA) controllers with very high performance price ratio. Using ordinary multi-mode fiber effective communication distance is up to 4KM while using ordinary single-mode fiber effective communication distance up to more than 40KM. Serial port communication rate is up to 921.6KBPS. As a result of the fiber as a transmission medium you can completely avoid the threat to communication device under the adverse environment such as lightning surges and electromagnetic interference at the same time it saves investments of the original lightning surge protection devices that using copper .

Functional Properties

◆  based on self -copyright IC
◆  Have the ability to automatically detect the baud rate of serial port signal

◆  Automatically test the reason of the device matt is that the device is power off or E1 line is broken.

      And then  indicate on the LED

◆  Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV

      Impedance (2 Ohm) CM(Common Mode): 6KV Impedance (2 Ohm) standard

◆  Support SNMP Network Management
◆  Serial channel can transmit adaptable serial data asynchronously 300-921.6Kbps baud rate
Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u   Serial interface

    Standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    EIA/TIA-422 RS-422 (ITU-T V.11)

    EIA/TIA-485 RS-485 (ISO/IEC8284)

    Serial Interface

    RS-422: TXD+ TXD- RXD+ RXD- Signal Ground

    RS-485 4 wires: TXD+ TXD- RXD+ RXD- Signal Ground

    RS-485 2 wires: Data+(Correspond TX+) Data-（Correspond TX-） Signal Ground

    RS-232: RXD TXD Signal Ground

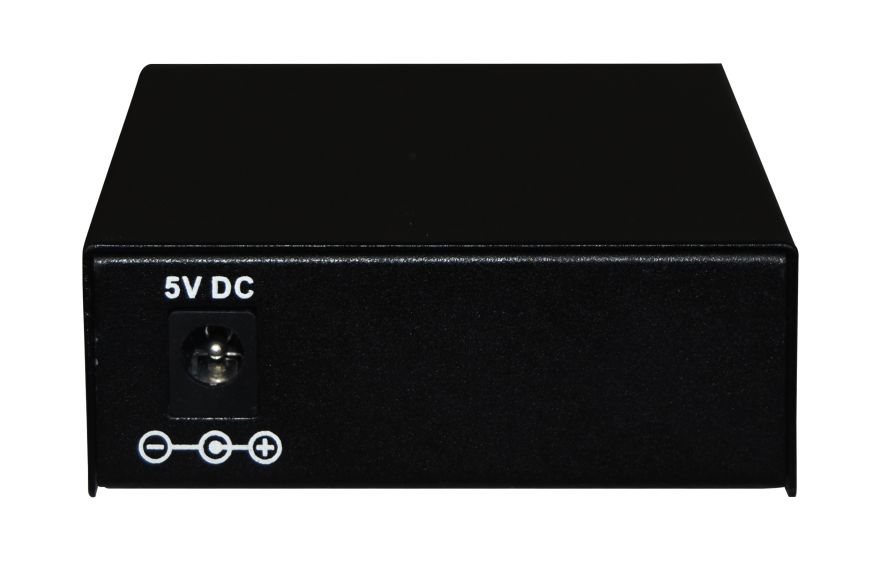

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         95X94X31mm(WXDXH)

    Piece Weight :      0.25KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)





Application Scheme

Applications

DataSheet Download
?
