Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

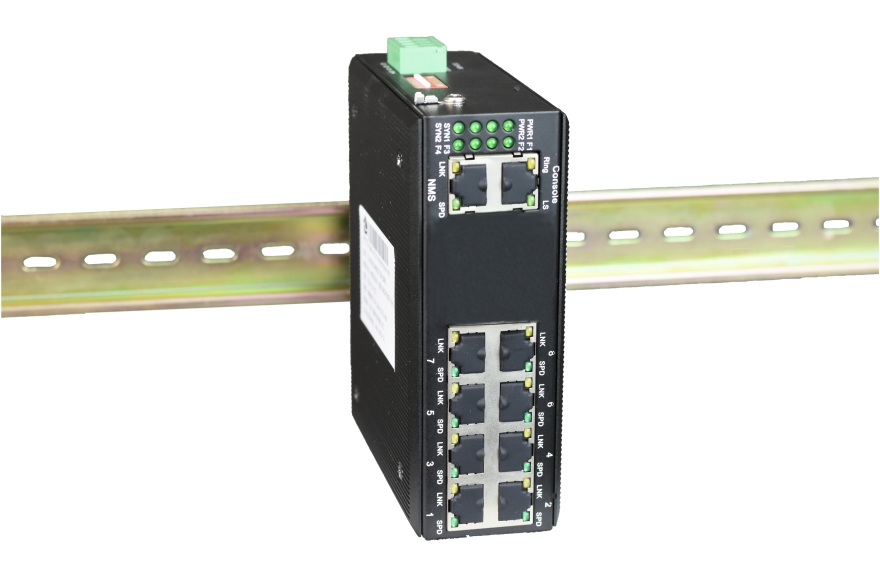

Industrial 8-port FE Switch

Type:FCJG-F8 Message

Description:This series of products is an industrial grade 8*100base-T switch this product provides 8*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rai

Product Description
    This series of products is an industrial grade 8*100base-T switch this product provides 8*FE; with perfect alarm function the machine is stable and reliable low power consumption high integration small size providing 35mm industry Rail and wall mounted two kinds of installation.
Functional Properties
◆ Industrial Ethernet series designed for harsh and harsh industrial environments;
◆ The device provides 8*100M Ethernet electrical ports supports 10/100M adaptive full/half duplex mode MDI /MDI-X automatic detection;
◆ The switch has a deadline to monitor and self-resetting and other functions long-term work in the large flow of video transmission environment does not crash greatly reducing the workload of equipment maintenance;
◆ Transceiver built-in 512KBits high-speed cache IP cameras can avoid the rapid changes in the monitoring screen environment caused by the transmission screen stuck phenomenon;
◆ Support VLAN long packet transmission can support IEEE802.1Q protocol with the switch products to use support up to 2048 bytes of Ethernet packets;
◆ Support a wide range of 9-55V AC and DC power input;
◆ Support internal isolation redundant dual power input;
◆ Power supply support overload protection anti-reverse protection;
◆ Meet the requirements of industrial four electromagnetic compatibility;
◆ Super lightning protection: anti-lightning anti-sensor high pressure anti-surge etc .;
◆ No fan efficient cooling reduce the repair time;
◆ Anodized aluminum alloy shell IP40 protection class able to withstand the harsh environment of the test;

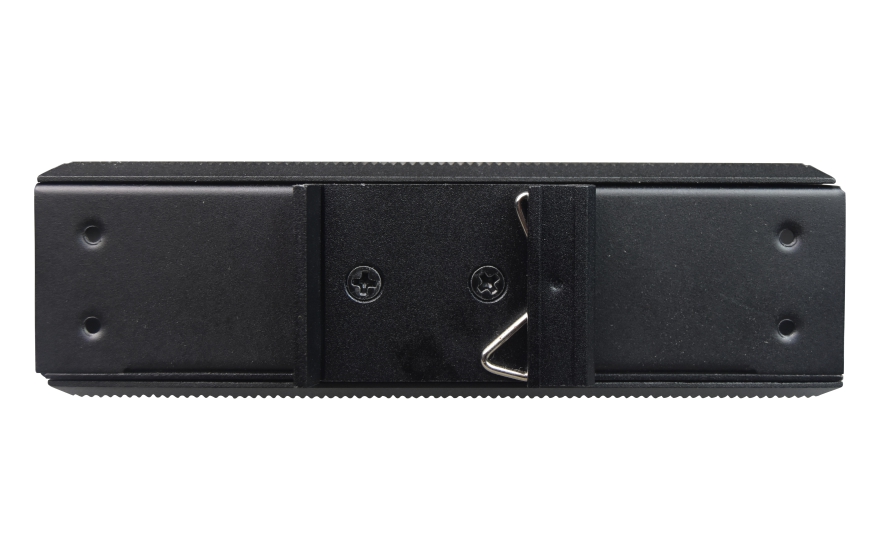

◆ Rail or wall mounted;
◆ Wide temperature type: Operating temperature -40 ℃ ~ +85 ℃;
◆ All models are tested by 100% roasting machine;
Technical Parameters
◆  E1 Interface
    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;
    E1 Impedance:             75Ω (unbalance) 120Ω (balance);
    Jitter tolerance:            In accord with protocol G.742 and G.823
    Allowed Attenuation:   0~6dBm
◆  Ethernet interface (10/100M)
    Interface rate:              10/100 Mbps half/full duplex auto-negotiation
    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)
    MAC Address Capability: 4096
    Connector:                  RJ45 support Auto-MDIX
◆  Power
    Power supply: AC180V ~ 260V；DC –48V；DC +24V
    Power consumption: ≤10W
◆  Dimension
    Product Size: Mini Type    216X140X31mm(WXDXH)
            Simple packaging:   274X193X84mm(WXDXH)
            Piece Weight :    1.25KG
◆  Working environment
    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)
    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

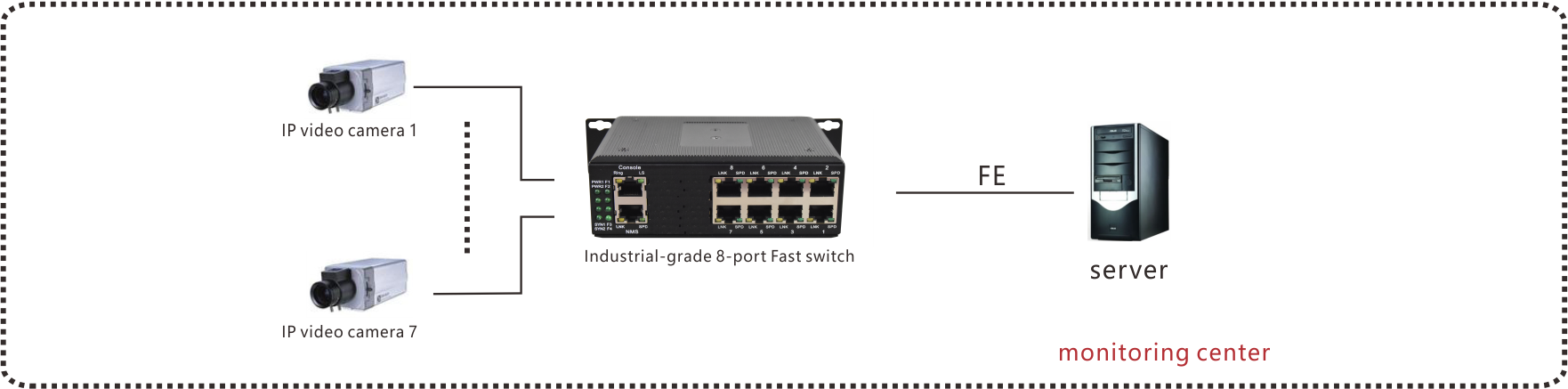

Application Scheme
DataSheet Download
?
